At Rivulis, our sprinkler solutions are designed as high-efficiency irrigation systems, ideal for micro-irrigation. Sprinkler systems operate between 1.5 and 4.0 bars (22 to 58 psi) with flow rates under 2000 l/h (528 GPH).
There are two different categories for sprinklers based on their specific applications:
Sprinklers
Micro-Sprinklers
- Flow rates between 300 and 2000 l/h (79 to 528 GPH)
- Applications:
- Open-field irrigation
- Full coverage systems for above or under tree irrigation.
- Flow rates under 300 (79 GPH)
- Applications: Their compact size makes them ideal for localized irrigation, both above and below tree canopies, particularly in:
- Orchards
- Protected agriculture (greenhouses, nurseries, etc)
- This category includes fogers and Mist micro-sprinklers.
Add image in box:
Add image in box: Add image in Micro-sprinklers box
Moreover, sprinklers can also be classified into various types based on water distribution types:
Dynamic sprinklers
Use moving parts (e.g, swivels or nozzles) to distribute water evenly.
Ideal for uniform coverage; suitable for a wide range of irrigation needs.
Static Sprinklers
Use fixed diffusers to shape the water pattern without any moving part
Cost-effective and simple; not suitable for applications like frost protection
Foggers and Micro-sprinklers
Produce fine droplets (55-100 microns) for targeted environmental control.
Primarily used in greenhouses and propagation for humidity and cooling.
Applications
As mentioned before, sprinkler systems support diverse applications, from open fields to orchards and protected environments, and offer greater flexibility than drip irrigation through their multifunctional design.
In addition to irrigation, sprinkler systems can be used to support a range of crop management tasks that improve plant health, quality, and resilience.
Cooling
Reduces crop canopy temperature by up to 10°C (18°F) through evaporative cooling.
Color Enhancement
Enhances fruit color and sugar content by creating temperature differentials during ripening.
Cleaning
Removes dust, pollutants, and insect residues to improve light interception and photosynthesis.
Frost Protection
Maintains plant tissue temperature during frost events through controlled water application.
Foliar Application
Enables delivery of fertilizers or crop protection products directly to plant foliage.
Sprinkler Technology and innovation at Rivulis
Image https://rivulis.imagerelay.com/searches/AZnw3lQUxId5VL6iGibU?page=6#assets/6161638
With a foundation built on the legacies of Naan, Dan, and Plastro, three pioneers in micro-irrigation, Rivulis offers a portfolio shaped by decades of field-proven experience and ongoing innovation.
These are some examples of the many specilised sprinkler solutions we offer:
Greenhouse Solutions
Suggest include greenhouse icon from ImageRelay

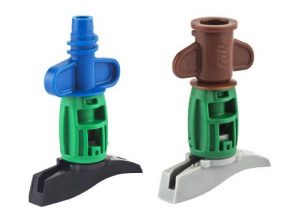

- Green Spin & Super Green Spin: High-uniformity, bridgeless sprinklers (up to 99% CU) designed for overhead irrigation without plant interference.

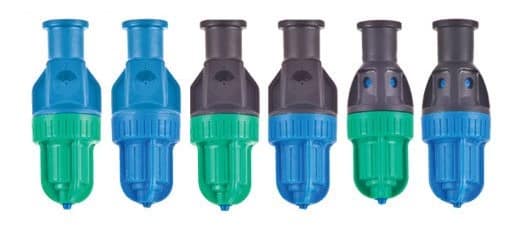

- Super Fogger: Available with 1, 2, or 4 outlets and Leakage Prevention Device (LPD). Produces ultra-fine 55-micron droplets, ideal for humidity control.
Orchard Solutions
Suggest include nuts icon from ImageRelay

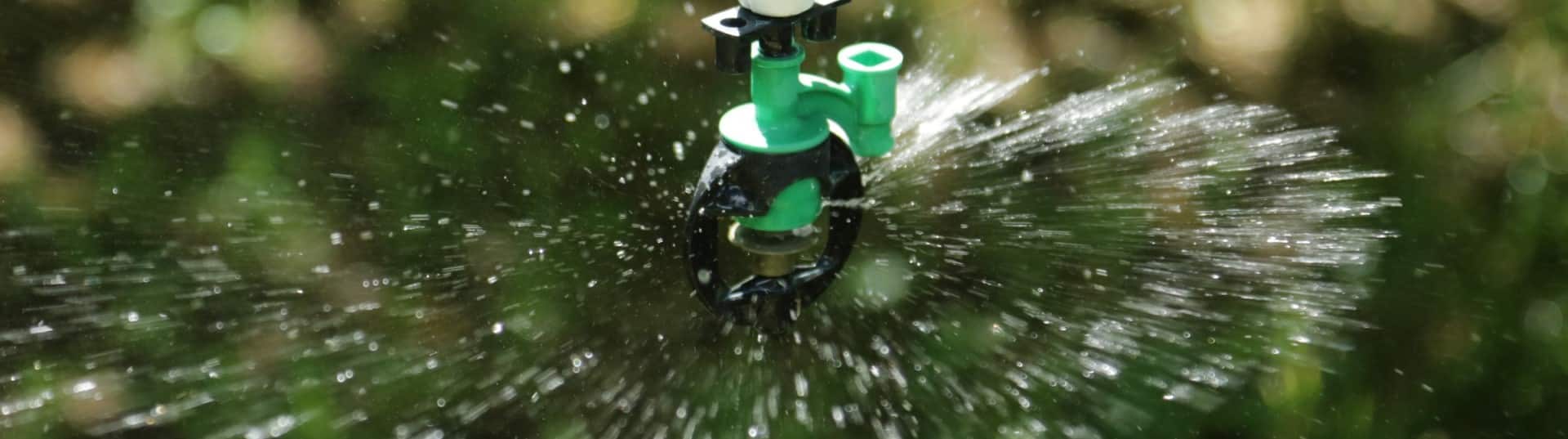

- AquaSmart 2002: A flow-regulated micro-sprinkler that can be installed upright or inverted, equipped with an insect proof swivel and nozzle to prevent clogging.
- Flipper: A dynamic, strip-pattern micro-sprinkler developed specifically for localized frost protection above the tree canop

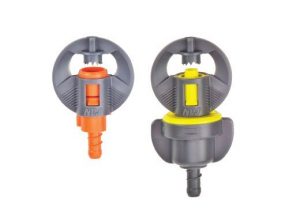

- Smart Jet: A static micro-sprinkler available in both flow-regulated and standard models, offering multiple spray patterns for varied applications.
Open Field Solutions
Suggest include onion icon from ImageRelay

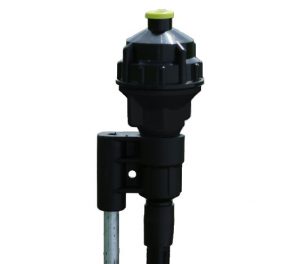

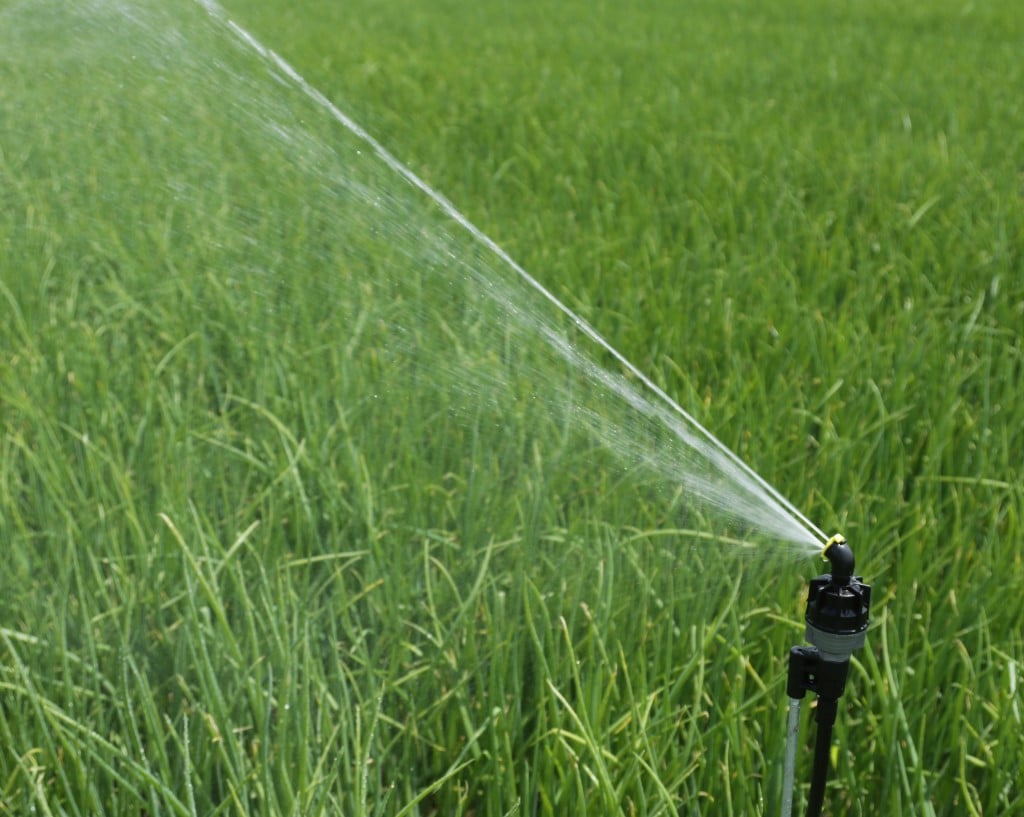

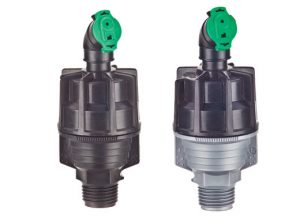

- Mamkad 16 & Super 10: Closed, ball-drive sprinklers that offer exceptional reliability and water distribution, ideal for large-scale field crops.

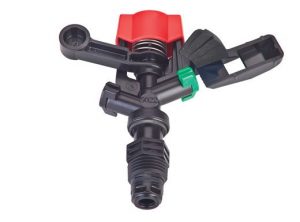

- 5022 SD: A hammer sprinkler known for durability and high uniformity, trusted for long-term use in demanding field conditions.

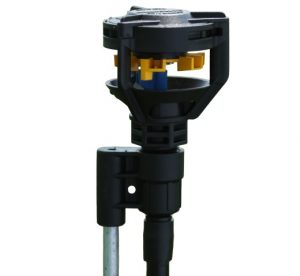

- Magic Drive: A magnetic-driven rotary sprinkler offering no vibration, no maintenance, and consistent performance, a unique solution in the market.
To learn more about Rivulis products including their range, technical specifications, and supporting tools for optimal sprinkler irrigation design please refer to Module 2
